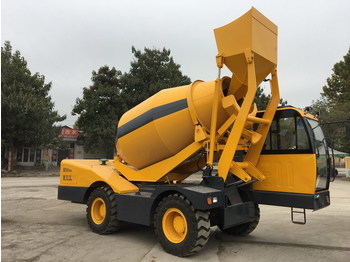

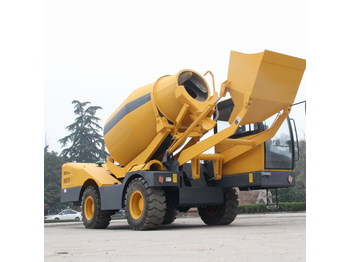

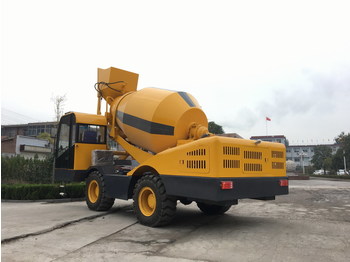

Καινούριο Μπετονιέρα φορτηγό QINGDAO PROMISING Self-Loader Concrete Mixer Truck CML400

4.0CBM Concrete Mixer Truck

Application:

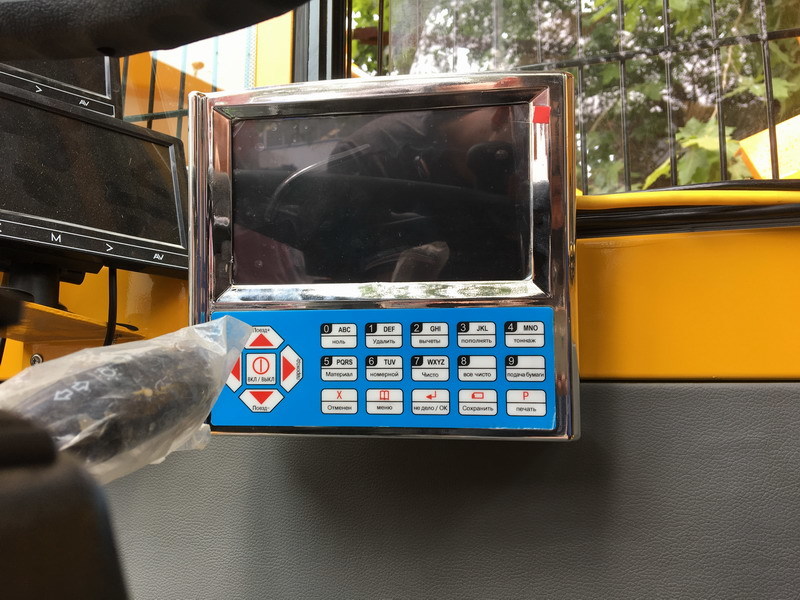

Concrete mixer trucks, or transit mixers, are used to mix and transport ready-mix concrete from the batch plant to the job site. Wherever concrete is produced and moved, concrete mixer loaders are employed. Our self-loading mixer is rough terrain machine which can be operated by one person. The automatic feeding mixer truck comes with electronic weight batching and has a typical concrete output of 14 CBM/hour.

Features:

92kW (125HP) 4-cylinder Powerful Diesel Engine

Oversized Drum offers a maximum discharging capacity of 4.0CBM.

30km/h Driving Speed may fulfill running for a long distance.

Dual Screen Backup (Reversing) Camera enables to avoid unnecessary collision to improve the service life of the truck.

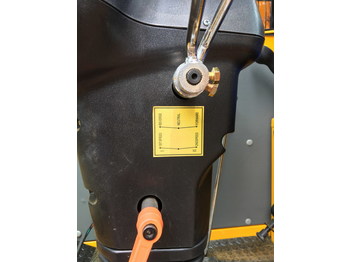

Single Joystick Operation for feeding, rotation and major operations to make the operation more easier and simple.

Two Oversized Water Tanks may realize single mixing of cement and flushing of tank.

South Korea Imported and Custom-Designed Key Hydraulic Components improve the softness and stability of the truck, which are more compatible with this model.

Improved service life of the whole machine.

Using an Enlarged Drum Rotating Motor ensures more uniform mixture and faster discharging.

A Complete Dashboard in the cab enables the machine to finish the works, such as self-loading, self-unloading, mixing, discharging, and water adding etc.

4.75mm-thick Manganese Plate Made Drum makes it have better wear resistance and longer service life.

The whole machine uses Waterproof Circuits and LED Lamps.

French TOTAL Oil Product is applied to ensure the purity of hydraulic oil and prolong the service life.

Shaped Seamless Steel Pipe Made Frame by Riveted Welding has reasonable design and higher stability.

Widened Steel Wire Tires offer a higher load-bearing capacity.

Reasonable Design for Easy Container Loading.

Technical Specifications:

Geometric Volume of Drum: 6.0CBM

Actual Mixing Volume of Drum: 4.0CBM

Residual Volume of Drum: < 0.8%

Drum Concrete Output: 14 CBM/hour, up to 4 batches per hour

Drum Mixing Speed: 3 gears both Forward & Reverse Rotation

Drum Max. Slewing Angle: 270degree

Engine: 92 kW (125 HP)/2400rpm Four-cylinder, Inline, Water-cooled, Four-stroke YUNNEI YN48GBZ Turbocharged Diesel Engine

Drive System Hydraulic Component: Danvers Variable Stroke Pump

Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

Low Speed: 0-9.5 km/h

High Speed: 0-30 km/h

Drive: 4-wheel Drive

Wheel Base: 2350mm

Gradeability: 30 degree

Hydraulic System: Two Variable Stroke Pumps-Driving Vehicle and Mixer Separately, Two Constant Rate Pumps-Providing power to Drum, Brake and Water System

Cabin: Luxury Cabin with Air Conditioning

Bucket Capacity: 0.5 CBM with Hydraulic Controlled Gate

Chute: Hydraulically Controlled Adjustable Chute with 15 degree vertical movement and free horizontal movement

Brake: Wet Brake, Parking Brake with Gear Box

Tire: 16/70-20-16PR Rough Terrain Engineering Tire

Steering: Hydraulic Rear Wheel Steering

Battery: 2x 12V/100Ah Battery for Lighting & Ignition

Concrete Discharging Angle: 270degree

Fuel Tank Capacity: 180 L

Water Tank Capacity: 500 L

Total Weight: 8300 kg

Overall Dimension (L x W x H): 7500 x 2700 x 3380mm

Optional:

Centralized Lubricating System

Other Engines
